E. Leitz, Wetzlar, No. 7521

Microscope Stand 1a, c. 1885

E. Leitz, Wetzlar, No. 7521. Microscope Stand 1, c. 1885



E. Leitz, Wetzlar, No. 7521. Microscope Stand I, c. 1885

E. Leitz, Wetzlar, No. 7521. Microscope Stativ I, c. 1885

E. Leitz, Wetzlar, No. 7521. Microscope Stativ 1, c. 1885

E. Leitz, Wetzlar, No. 7521. Microscope Stand 1, c. 1885

E. Leitz, Wetzlar, No. 7521. Microscope Stand 1, c. 1885

E. Leitz, Wetzlar, No. 7521. Microscope Stand 1, c. 1885, sub-stage

E. Leitz, Wetzlar, No. 7521. Microscope Stand 1, c. 1885. sub-stage Abbe condenser

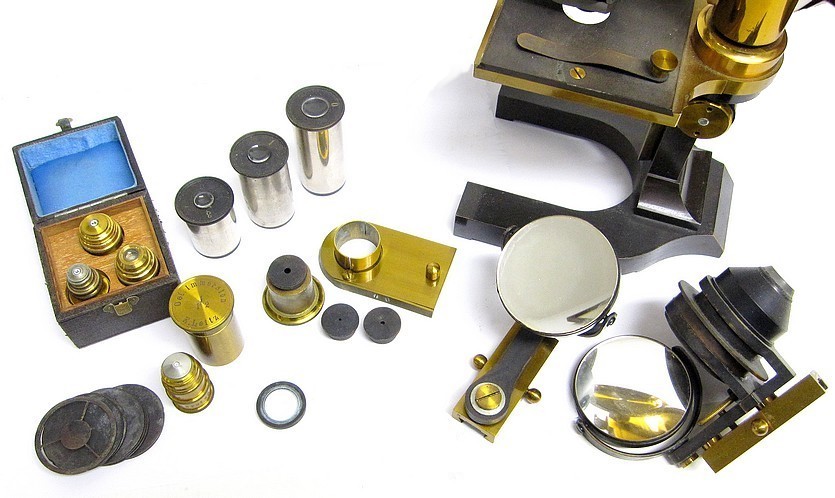

E. Leitz, Wetzlar, No. 7521. Microscope Stand 1, c. 1885. Accessories

The accessories include three eyepieces numbered 0, 1, and 3, four objectives marked 3, 7, 8 (in leather box) and 1/12 oel immersion (in brass canister), an Abbe condenser with double mirror attached, an alternate mirror assembly for use with the slide-in aperture stop holder with three stops, a series of stops and filters for use with the Abbe condenser, a double objective changer, and an eyepiece micrometer. The storage case comes complete with the key.

This instrument was the top of the line microscope sold by the firm in 1885.

E. Leitz, Wetzlar, No. 7521. Microscope Stand 1, c. 1885. In storage case

E. Leitz, Wetzlar, No. 7521. Microscope Stand 1, c. 1885. Storage case

    The following was extracted from the 1888 Leitz catalog:

E. Leitz, Wetzlar  Microscope Stand 1, c. 1885
