Imported French Microscope with Ball & Socket Inclination

Benjamin Pike's Son & Co. - The Smaller Educational Microscope, c. 1880



Pike_Eductional_microscope Pike_Eductional_microscope Pike_Eductional_microscope


Pike_Eductional_microscope Pike_Eductional_microscope Pike_Eductional_microscope


Pike_Eductional_microscope
Pike_Eductional_microscope


Pike_Eductional_microscope


Franks Optician, 48 Briggate, Leeds

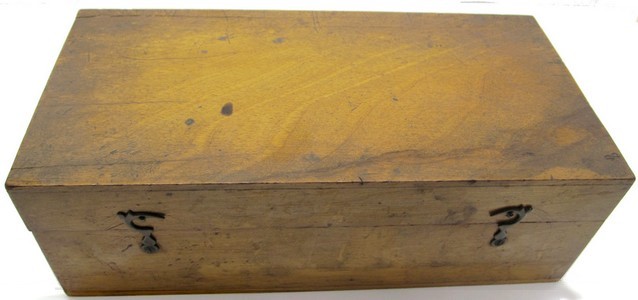

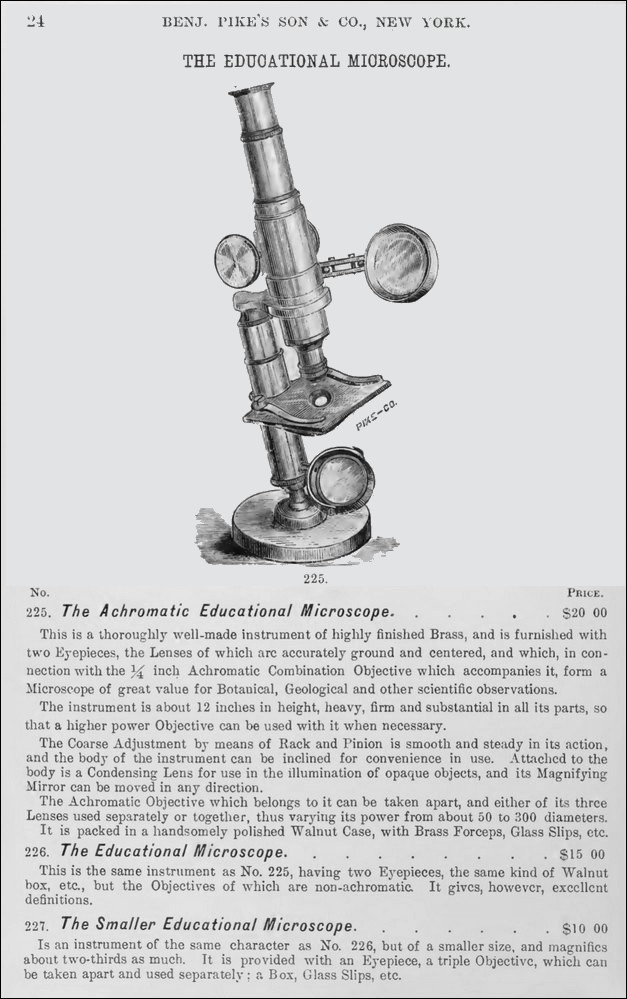

This microscope is unsigned by its maker. It was likely made in France. It was imported by the retailer Franks Optician, 48 Briggate, Leeds as indicated by a label attached to the inside cover of the storage case. This microscope was also offered for sale in the USA as seen in the excerpt from the Benjamin Pike's Son & Co. catalog c. 1880, where it was called The Smaller Educational Microscope.

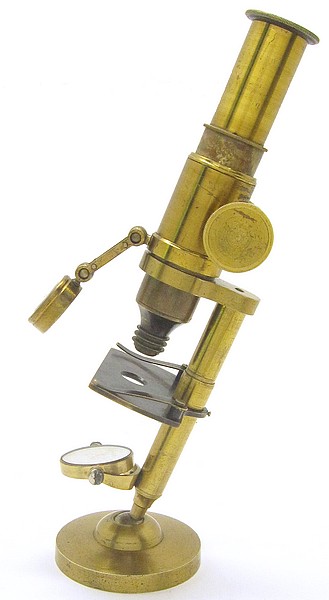

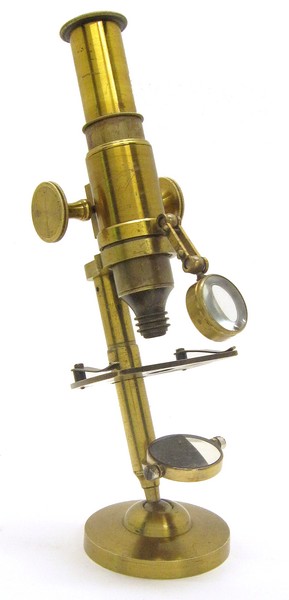

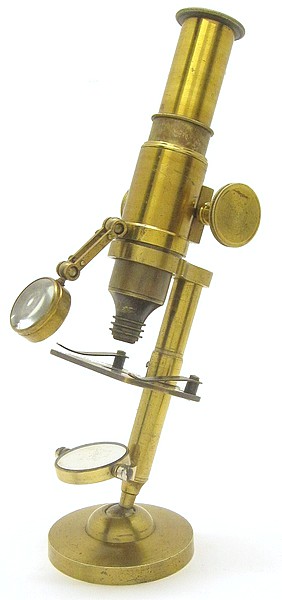

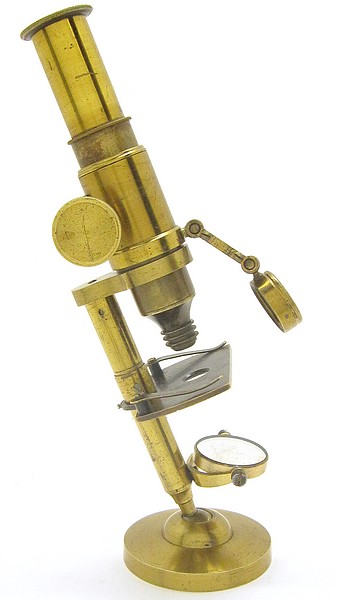

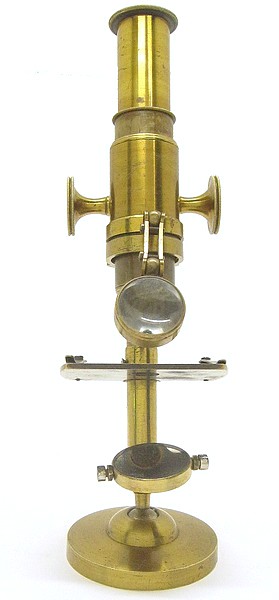

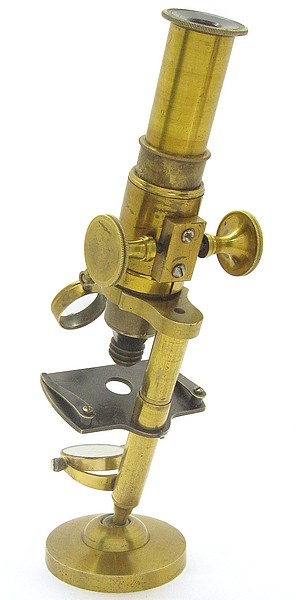

The microscope is made entirely of brass. It measures about 8-inches in height as shown in the photos. The base is 2.5-inches in diameter. Focusing is by rack and pinion. Inclination utilizes a ball and socket mechanism. It is suppled with a single eyepiece, a triple button objective, which is divisible for power change, and a tube mounted condenser lens for illumination of opaque specimens.
