James W. Queen & Co., Philadelphia and New York

The Student Model Microscope, c. 1874

James W. Queen & Co., Philadelphia and New York. The Student Model Microscope, c. 1874 James W. Queen & Co., Philadelphia and New York. The Student Model Microscope, c. 1874
James W. Queen & Co., Philadelphia and New York. The Student Model Microscope, c. 1874

The microscope has a lacquered brass tube and knobs. The cast iron base, pillar, and limb have a green-gold bronzed finish.

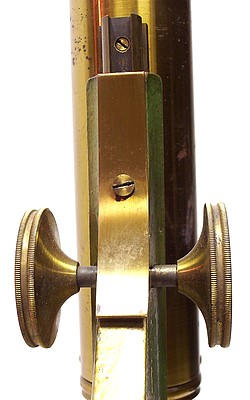

focusing mechanism

As opposed to the normal rack and pinion, the tube focuses by turning the knobs to activate friction drive consisting of a metal cylinder which is forced, by means of a brass spring, against a grove cut within a brass bar attached to the tube. Later versions of the Queen Student Model utilized a rack and pinion for the coarse focusing.




The following was extracted from the 1870 Queen catalog:



James W. Queen & Co., Philadelphia and New York. The Student Model Microscope





1665. Queen's Student's Microscope. This stand has been designed and constructed by us especially to meet the wants of students and profesaional men, combining, with excellent workmanship, most of the advantages of the more elaborate instruments, at less than one-third of their cost. The very highest powers may be used with it perfectly. Its height is 14 inches. The base and arm are of iron, finished in ligbt-green bronze; whilst the body and all other parts are of brass of the very highest finish. The coarse adjustment is of an entirely novel construction, working with entire smoothness; fine adjustment by micrometer screw; movable glass stage, beneath which a tube is fitted for carrying the diaphragm and accessory illuminating apparatus; concave and plane mirrors, arranged for direct and oblique illumination, fitted with Society Screw. Price of stand with one eye-piece, draw-tube, two object glasses Number 0 {1 inch), and Number 0 (1/4 inch), giving powers from 60 to 250 diameters, condensing lens on separate stand, a glass slip, with ledge and ccovers, for the examination of objects in fluid, needles, stage forceps, and brass pliers, packed in a handsome polished walnut cabinet, with good lock and brass handles. Price...$65.00

in storage case
ad

An essay discussing the Queen business is online
