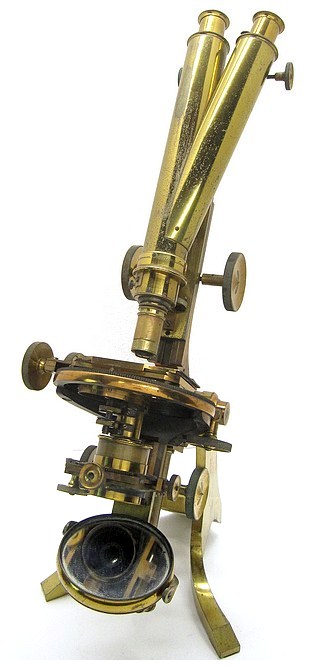

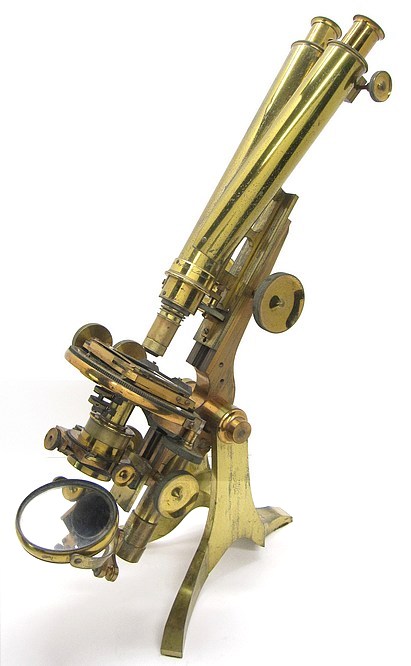

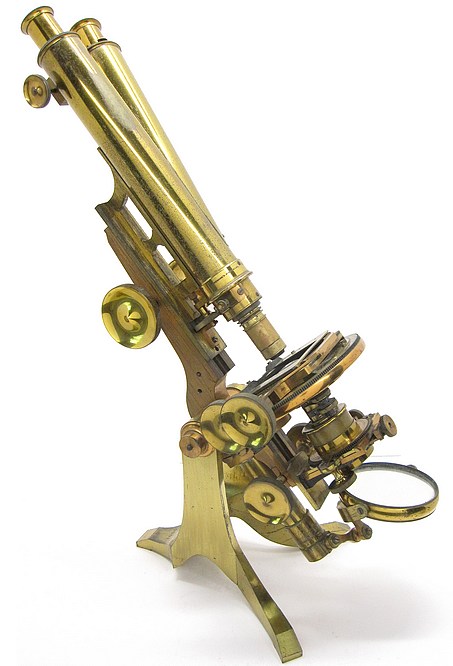

Ross, London, #4001 c. 1875

Binocular Jackson model microscope No. Ia

Tube marked "Wenham's Binocular by Ross London"

Ross, London, #4001 c. 1875. Binocular Jackson model microscope No. Ia Ross, London, #4001 c. 1875. Binocular Jackson model microscope No. Ia
Ross, London, #4001 c. 1875. Binocular Jackson model microscope No. Ia Ross, London, #4001 c. 1875. Binocular Jackson model microscope No. Ia
Ross, London, #4001 c. 1875. Binocular Jackson model microscope No. Ia Ross, London, #4001 c. 1875. Binocular Jackson model microscope No. Ia

The following was extracted from the 1875 Ross catalog:

No. IA Binocular Microscope Stand (I) with two eye-pieces,coarse and fine adjustments for focussing, graduated concentric rotating stage, having 1-inch of rectangular motion, rack and screw movements, clamping lever, graduated sub-stage for holding and adjusting illuminating and polarizing apparatus, diaphragm plate, plane and concave mirrors, and WENHAM’S Binocular arrangement.

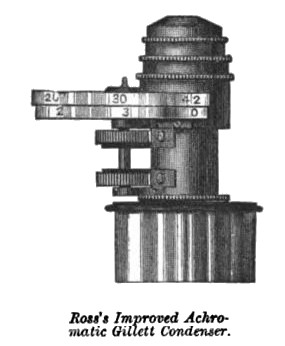

ross improved gillett condenser the achromatic condenser is marked: ross, 2053, london. it has two diaphragm disks that can be used in combination where each is controlled by a milled knob. the upper disk has conventional graduated apertures while the bottom disk has apertures for dark field and oblique illumination.

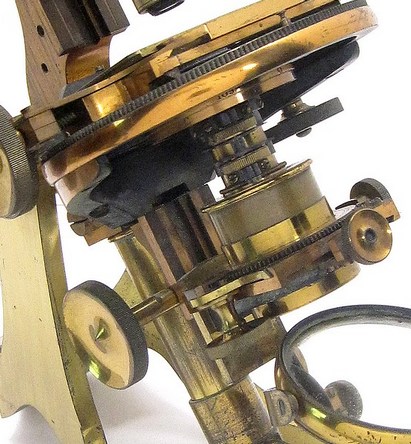

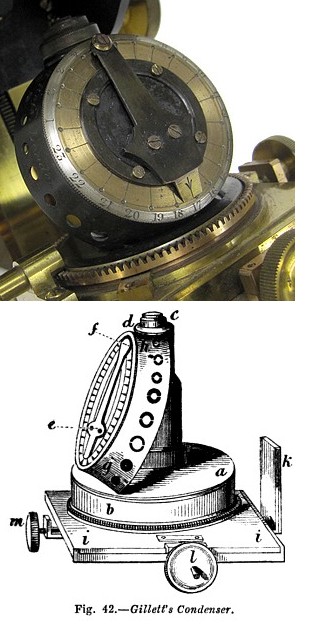

The microscope is furnished with an example of the Ross improved Gillett achromatic condenser. It is marked: Ross 2053, London. It has two diaphragm disks that can be used in combination where each is controlled by a milled knob. The upper disk has conventional graduated apertures while the bottom disk has apertures for dark field and oblique illumination. Compare this with the earlier form of the Gillett condenser.



ross, london, #4001 microscope

No.1 Improved Binocular Microscope Stand.

Ross' Model (1), with two eye-pieces, coarse and fine adjustments for focusing, graduated concentric rotating stage, having 1 inch of rectangular motion, rack and screw movements, clamping lever, graduated sub-stage for holding and adjusting illuminating and polarizing apparatus, diaphragm plate, plane and concave mirrors, and Wenham's Binocular arrangement

No.1A Improved Binocular Microscope Stand.

Designed by Wenham, on Jackson's Model (2), with two eye-pieces, coarse and fine adjustments for focusing, graduated concentric rotating stage, having 1 inch of rectangular motion, rack and screw movements; clamping lever, graduated sub-stage for holding and adjusting illuminating and polarizing apparatus, diaphragm plate, plane and concave mirrors, and Wenham's Binocular arrangement.

the achromatic condenser is marked: ross, 2053, london. it has two diaphragm disks that can be used in combination where each is controlled by a milled knob. the upper disk has conventional graduated apertures while the bottom disk has apertures for dark field and oblique illumination.

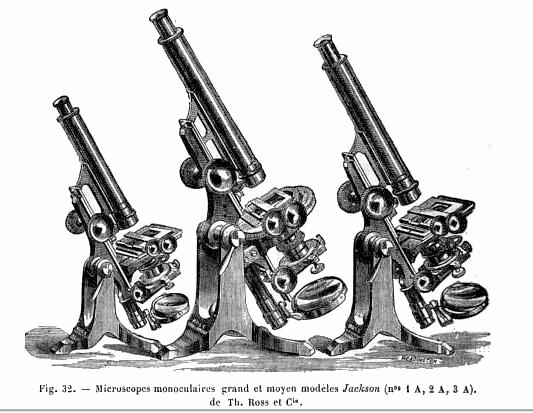

ross jackson-limb microscopes

ross jackson limb binocular microscope

Remarks on the Binocular Microscope by F. H. Wenham

See: Ross of London chronology by T. Wayland

ross london binocular microscope serial number 4001
