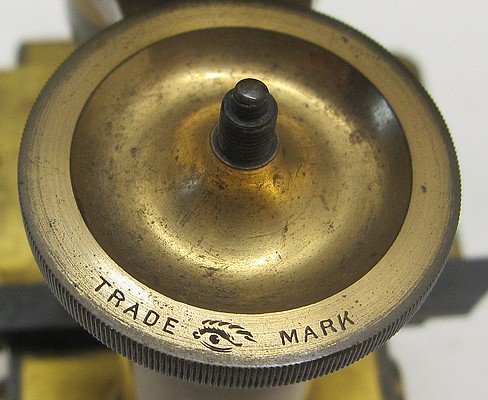

While this microscope is not marked with the name of the manufacturer,
the fine adjustment knob is engraved with a trademark that consists of
the two words "Trade" and "Mark" surrounding an image of an eye. This is the
trademark used by J. Parkes & Son, Birmingham England. The date of
manufacture of this microscope is uncertain. The microscope is not located in either the 1857
or 1862 Parkes catalogs. Most likely, it dates from the last quarter of the
19th century.

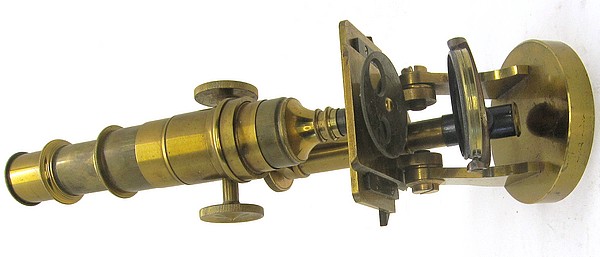

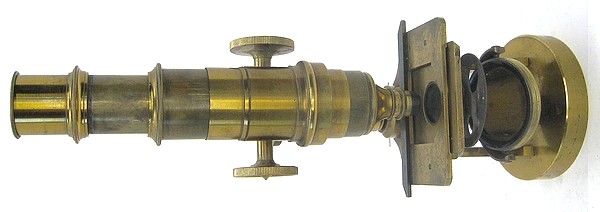

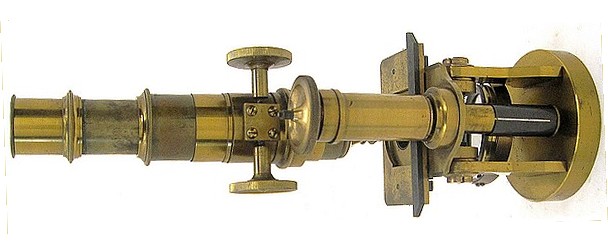

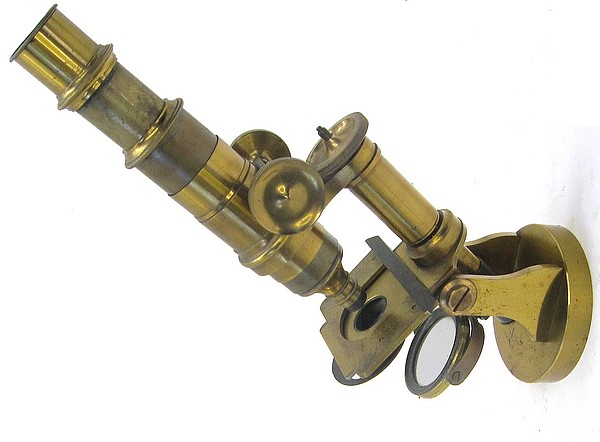

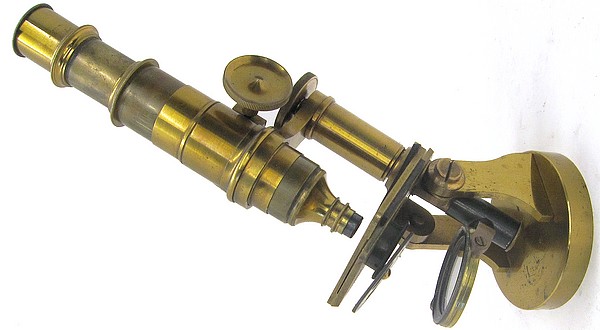

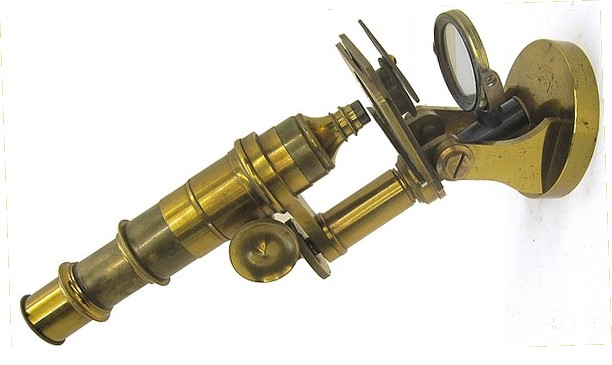

Despite having a round base, this microscope is basically of the continental
style. It is about 10 inches tall as shown in the images, inclined with the drawtube partially extended.
The base is 3 inches in diameter and is lead filled. The main focus is achieved by rack and pinion. The fine focus utilizes a micrometer
screw operating on a continental type mechanism. It came equipped a single objective

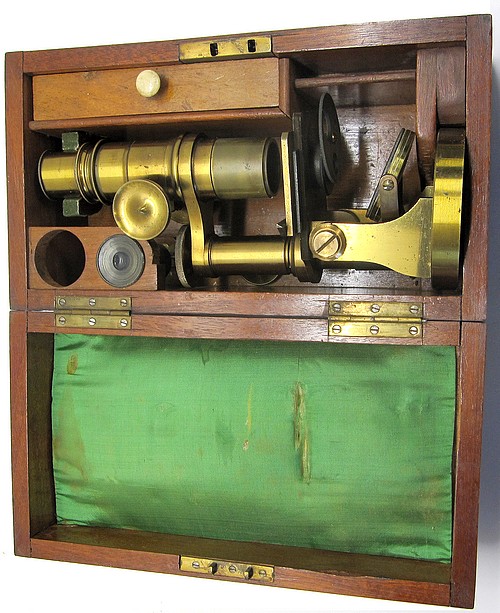

and two eyepieces. The empty slot in the case most likely held a canister for the
objective. The stage is equipped with a gliding slide holder. Below the stage is an
aperture disk.
