The following extract
              is from the Journal of the Royal Microscopical
              Society, 1898 . It describes the original Berger
              microscope.


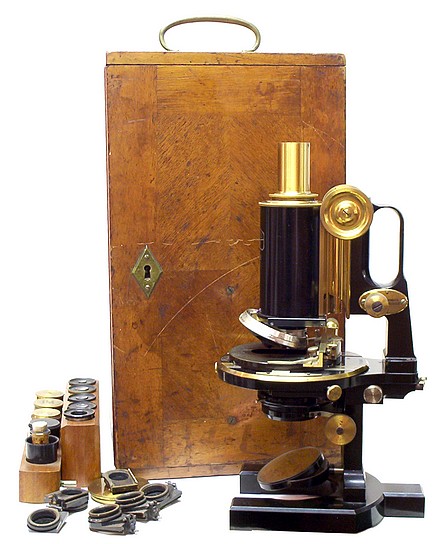

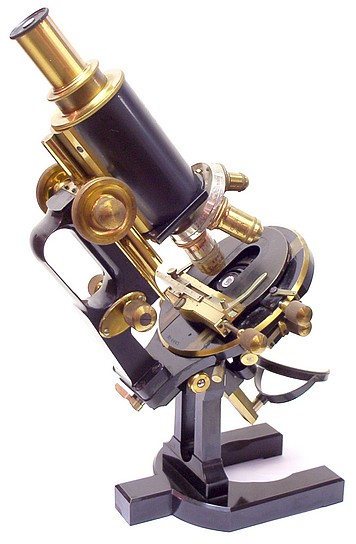

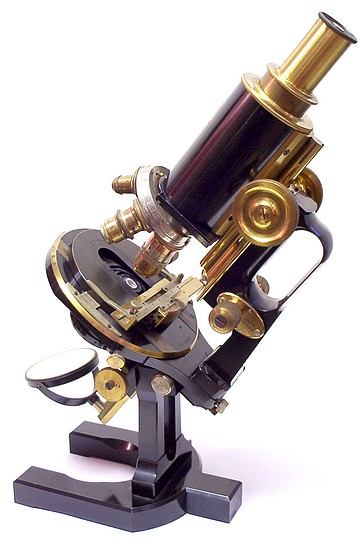

             Berger's New

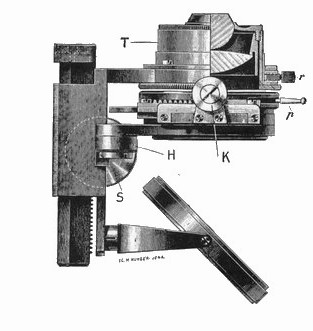

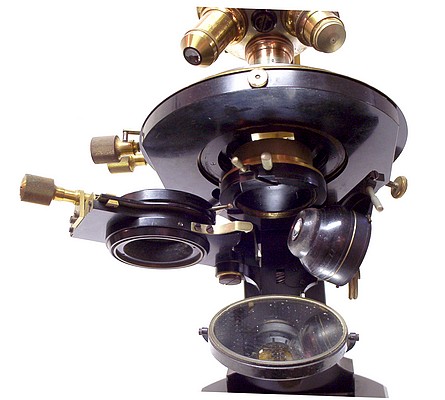

              Microscope. The novelty in this instrument
              is entirely confined to the substage, and is intended
              to meet the constructional difficulties involved in
              adapting the adjustments (especially the fine) to
              Microscopes used for high-power photomicrography.
              Usually the strain on the fine adjustment caused by
              the extreme length (and consequent weight) of tube is

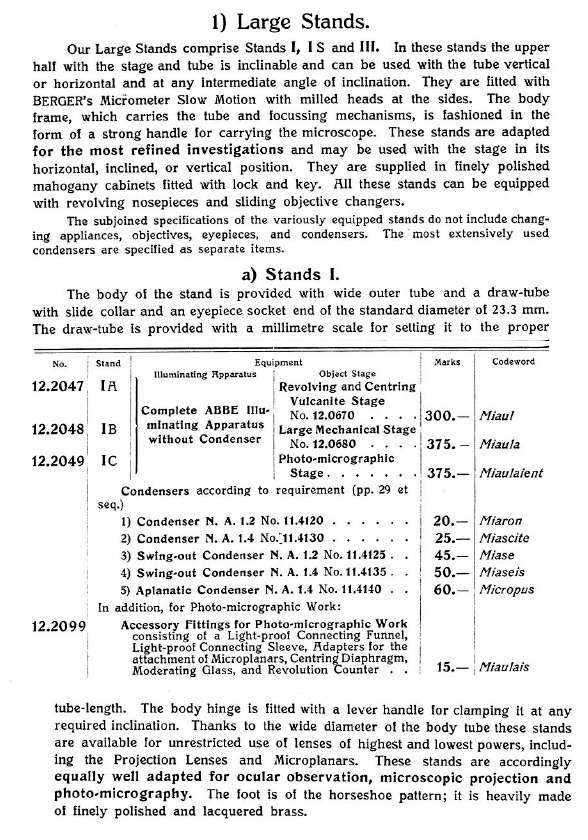

              a decided disadvantage. Herr Berger arranges so that
              both his coarse and fine adjustment are independent
              of the drawout. The Microscope is also suitable for

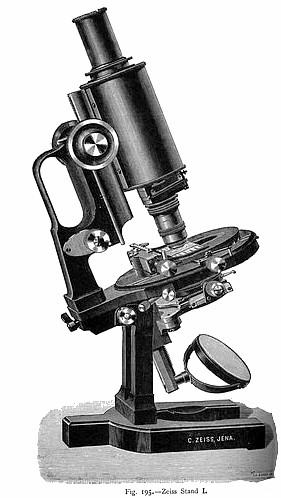

              ordinary use. Fig. 98 gives a general view, fig. 99 a
              vertical section, and fig. 100 a ground plan.

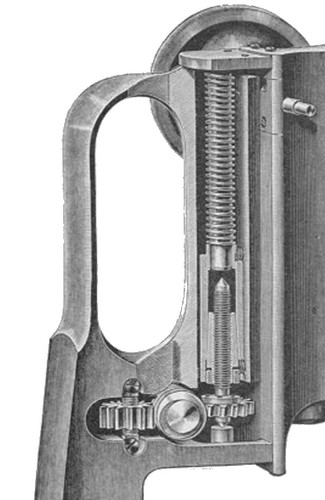

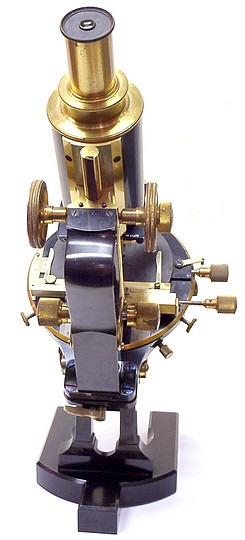

            The oval-shaped piece B
              is arranged as a handle, which affords a strong brace
              between the fine adjustment path V (fig. 100) of the
              micrometer work and the special hollow-cast standard

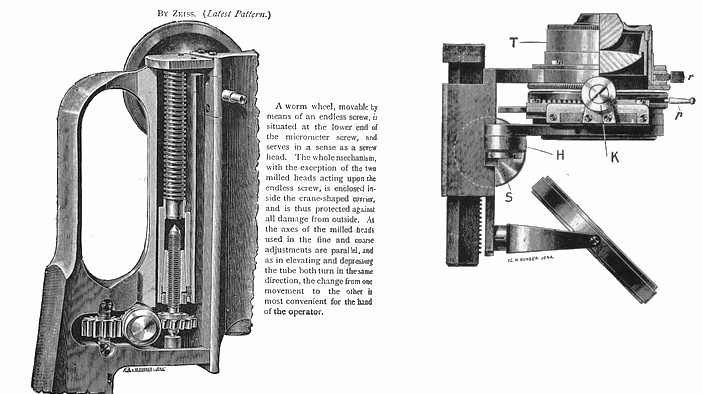

              H (fig. 99). The fine adjustment differs widely from
              the general form, and is fitted by means of a very
              strong dove-tail shaped slide F, so hollowed out in
              its upper part that it affords the requisite room for
              the spiral spring W. The under part of F is pierced,
              and conceals the very long nut for the
              micrometer-screw M. Contact ensues between the
              hard-tempered extremity of the micrometer-screw and
              another also hard-tempered anvil-shaped steel piece
              which is screwed into the lid D2, closing dust-tight
              the under opening in the standard H. On the fine
              adjustment slide F rests, very solidly screwed, the
              gear P for the coarse movement. The aluminum tube T
              (fig. 99). In order to avoid undue wear and tear of
              the mechanism is connected in the usual way with the
              tooth-rack by means of a copper companion piece Z
              (fig. 100). The coarse adjustment follows the usual
              models. The micrometer-screw is thus seen to be
              packed away in the hollow stand for protection's
              sake. It is completely sheltered from direct
              hand-touch. It is turned by means of an endless screw
              E (figs 99 and 100) which gears into the toothed
              wheel S, working on the flange of the screw, and
              carries the usual micrometer knob. By means of this
              arrangement two conditions are satisfied: the fine
              adjustment is slowed in the most desirable way
              without the necessity of requiring from the
              micrometer-screw too fine a motion, and the position
              of the endless screw, so firm and safe in the
              handle-like stand, renders even rough mechanical
              operations entirely without effect on the fine
              adjustment.


             In order to avoid
              injury to the micrometer-screw when the slide F is at
              its extreme highest or lowest position, a special
              protection arrangement, limiting the play of the
              endless screw, is contrived for the fine adjustment.
              As is seen from fig. 100, the endless screw E engages
              another toothed wheel S, which is a nut working on a
              vertical screw. This nut S2 comes into contact with
              the upper or lower surface of the chamber containing
              it before the fine adjustment slide F reaches the end
              of its travel, thus preventing strain on that part of
              the mechanism.
