J. Zentmayer, Philadelphia

Four examples of the United States Army Hospital Model Microscope

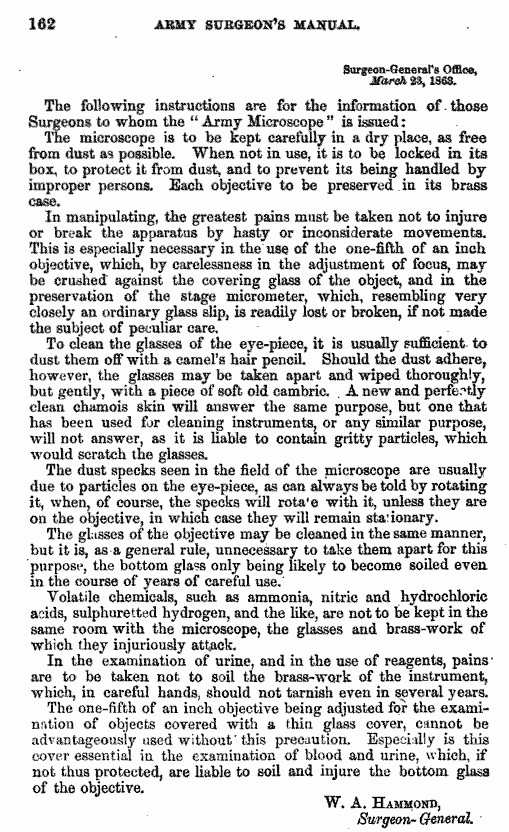

The United States Army Hospital Model microscope was manufactured by the optician and scientific instrument maker Joseph Zentmayer of Philadelphia. It was first introduced in 1862-1863 for use by the U.S.A. Medical Department during the Civil War. It continued to be sold to the government as well as to the civilian market until the end of the 19th century. Over that time span, the microscope incorporated a number of modification and improvements. The four examples below are illustrative of some of these changes.

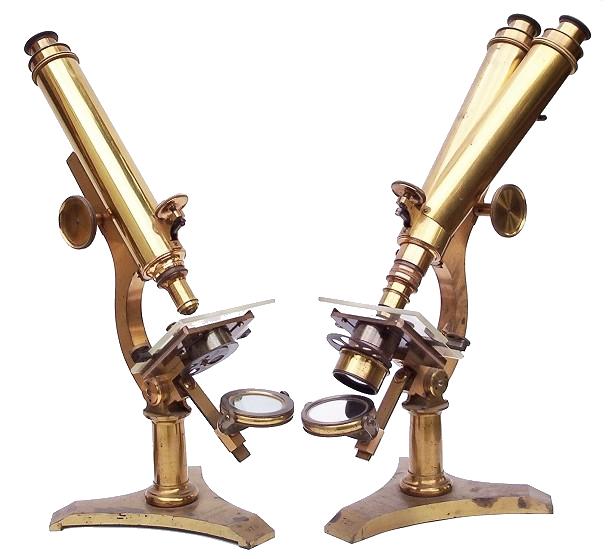

US Army Hospital Model Microscopes



Monocular:  serial no. 975
prior to 1876

(click on the above image for additional photos)



Binocular: serial no. 723
prior to 1876

(click on the above image for additional photos)



The Army microscopes made after 1876 incorporated the swinging substage and, later, the new fine adjustment described in the Zentmayer patent of  Aug. 15, 1876

Zentmayer patent

Zentnayer patent

Zentmayer US Army Hospital microscope #1867

Zentmayer US Army Hospital microscope #3773

Monocular: serial no. 1867
c. 1877

(click on the above image for additional photos)

Binocular: serial no. 3773
after 1876

(click on the above image for additional photos)

Biographical Sketch of Joseph Zentmayer
